TP-LINK Wireless N PCI Adapter Item # 144778 OfficeMax # 23626738

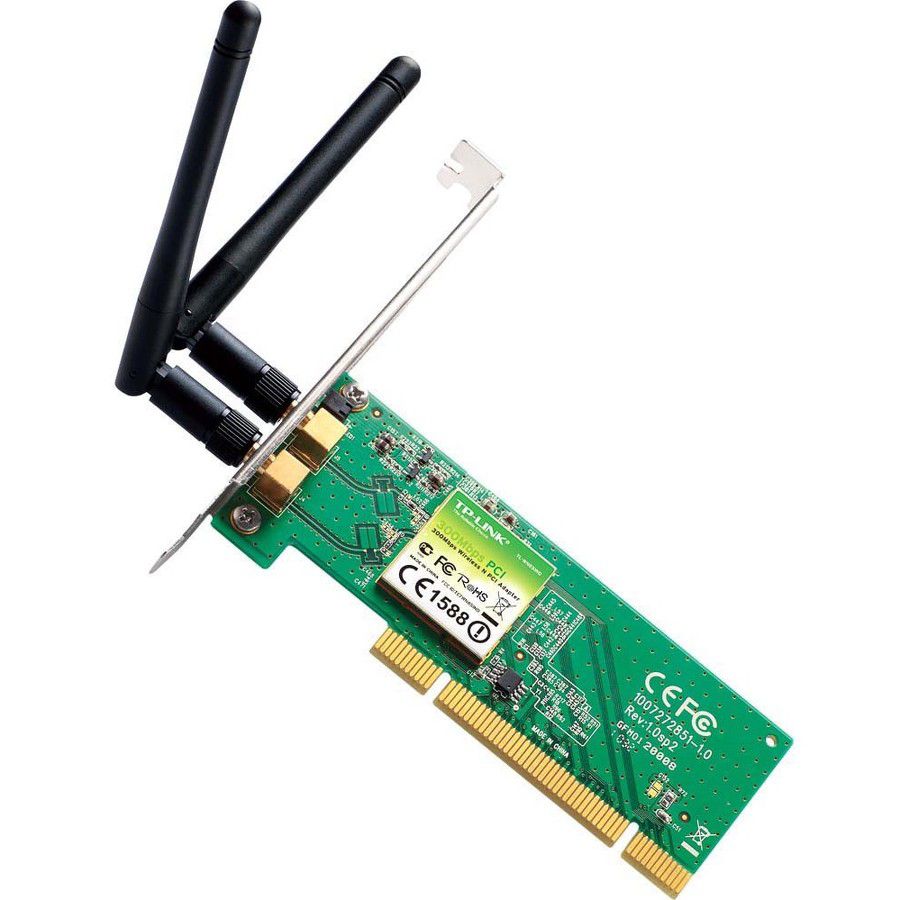

TP-LINK Wireless N PCI Adapter

Write the first review

Recommended Alternatives

Description

TL-WN951N Wireless N PCI Adapter complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, and IEEE 802.11b standards. Wireless transmission rates can reach up to 300Mbps. The PCI Card adopts MIMO as well as SST technologies, has three external detachable omni directional antennas providing even better wireless performance, transmission rates, stability and coverage. At the same time, CCA technology automatically avoids channel conflicts using its channel selection feature. This product supports 64/128/152-bit WEP encryptions, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions and mechanisms in addition to the adapter's QSS (Quick Secure Setup) feature, allowing users to quickly and easily configure wireless security. This product can also simultaneously operate bandwidth intensive applications such as voice, and video. Applications using a lot of bandwidth that are sensitive to interruptions such as voice and video applications are given priority in order to assure quality. It also works well with other 11g and 11n protocol wireless products.

Back to Menu

Product Details

Item # 144778
Manufacturer # DW2700
Wireless Transmission Speed 300 Mbit/s
Wireless Security AES; TKIP; WPA; WPA2; WPA-PSK; WPA2-PSK; 64/128/152-bit WEP
height 4.8 in
Additional Information Modulation Techniques:OFDM; CCK; 16-QAM; 64-QAM
System Requirements Operating Systems: Windows 7(32/64bits); Windows Vista(32/64bits); Windows XP(32/64bits); Windows 2000
antenna type Omnidirectional Antenna
width 0.9 in
depth 5.2 in
Device Supported Desktop Computer
Product Name TL-WN951N 300Mbps Advanced wireless N PCI Adapter
Number of Antennas 3
Antenna Gain 2 dBi
manufacturer TP-LINK Technologies Co., Ltd
Host Interface PCI
brand name TP-LINK
Wireless LAN Standard IEEE 802.11n
length 5.2 in.
ISM Maximum Frequency 2.48 GHz
ISM Band Yes
form factor Internal
ISM Minimum Frequency 2.40 GHz
warranty length 2-year limited
model name TL-WN951N

Back to Menu

Back to Menu

Back To Top

From the Manufacturer|Powered by Webcollage

Thank You Is the information in this section helpful? Yes / No

Product Tour

{"tourViews":[{"viewImage":{"assetWrapper":"tour","runtimeSrc":{"height":847,"width":1280,"src":"/_cp/products/1321828004920/tab-5e242f5d-3535-4880-bd69-3caeb30939ca/resource-7ac27fa5-3349-4d7b-98a3-b3f53b332e59.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":847,"width":1280,"src":"/_cp/products/1321828004920/tab-5e242f5d-3535-4880-bd69-3caeb30939ca/resource-7ac27fa5-3349-4d7b-98a3-b3f53b332e59.jpg"},"sources":[{"height":635,"width":960,"src":"/_cp/products/1321828004920/tab-5e242f5d-3535-4880-bd69-3caeb30939ca/resource-7ac27fa5-3349-4d7b-98a3-b3f53b332e59.jpg.w960.jpg","profile":"W960"},{"height":317,"width":480,"src":"/_cp/products/1321828004920/tab-5e242f5d-3535-4880-bd69-3caeb30939ca/resource-7ac27fa5-3349-4d7b-98a3-b3f53b332e59.jpg.w480.jpg","profile":"W480"},{"height":158,"width":240,"src":"/_cp/products/1321828004920/tab-5e242f5d-3535-4880-bd69-3caeb30939ca/resource-7ac27fa5-3349-4d7b-98a3-b3f53b332e59.jpg.w240.jpg","profile":"W240"}]},"hotspots":[{"hotspotX":0.8071428571428572,"captionFromAttr":"Wireless N Adapter","direction":"right","description":"<p>Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and internet calls<\/p>\n<p>Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X<\/p>\n<p>Supports ad-hoc and infrastructure mode&#160;<\/p>\n<p>Supports Sony PSP X-Link for joyful online gaming for Windows XP<\/p>","hotspotY":0.5243243243243243},{"hotspotX":0.3607142857142857,"captionFromAttr":"Antennas","direction":"left","description":"MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability","hotspotY":0.2594594594594595},{"hotspotX":0.9428571428571428,"captionFromAttr":"Supporting Operating Systems","direction":"right","description":"Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit","hotspotY":0.6270270270270271}]}],"ipiCompatible":false}
  1. Wireless N Adapter
  2. Antennas
  3. Supporting Operating Systems
Image/Features

Wireless N Adapter

Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and internet calls

Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X

Supports ad-hoc and infrastructure mode

Supports Sony PSP X-Link for joyful online gaming for Windows XP

Antennas

MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability

Supporting Operating Systems

Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit
Product Tour
Click to Start
See More:

Overview

  • What This Product Does

    Experience interruption-free performance and exceptional data transfer speeds with the TL-WN951N 300 Mbps Wireless-N PCI Adapter by TP-LINK. This network adapter enables you to add wireless Internet connectivity to your notebook computer or upgrade its connectivity. MIMO and SST technologies combine to deliver wireless transmission rates of up to 300 Mbps and exceptional stability.

  • Exceptional Performance and Stability with MIMO

    MIMO (Multi Input Multi Output) technology delivers improved wireless transmission rates and stability, while three detachable omni-directional antennas are designed to provide optimal wireless performance, transmission rates, stability, and coverage.

    SST technology promotes high wireless transmission performance in long-distance and high-interference environments.

  • Worry-Free Wireless Security

    This product's QSS (Quick Secure Setup) function complies with the WPS standard to ensure the security of your wireless network. The Wireless-N PCI Adapter supports 64/128/152-bit WEP encryption, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryption and mechanisms. These combined security measures are designed to deliver stronger, safer protection and guard against intruders.

  • One Button Security Setup

    The TL-WN951N features Wi-Fi Protected Setup™ (WPS) which allows you to setup your security by simply pressing the "WPS" button. This automatically establishes a WPA2 secure connection which is more secure than WEP encryptions. Not only is WPA2 faster than normal security setups, you won’t have to remember a password!

  • Easy to Use

    The TL-WN951N comes with a CD utility that helps you setup your wireless network and configure security options. With setup this easy, even novice users can be up and running in minutes.

Features

  • Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and internet calls
  • MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
  • Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
  • Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit
  • Supports ad-hoc and infrastructure mode
  • Supports Sony PSP X-Link for joyful online gaming for Windows XP
  • Bundled utility provides quick & hassle free installation
  • Seamlessly compatible with 802.11n/b/g products

Package Contents

  • TL-WN951N Wireless Adapter
  • Resource CD
  • Quick Installation Guide

PCI Adapter Comparison Chart

150Mbps Wireless N PCI Adapter 300Mbps Wireless N PCI Adapter 300Mbps Wireless N PCI Adapter
Model TL-WN751ND TL-WN851ND TL-WN951N
Speed Up to 150 Mbps Up to 300 Mbps Up to 300 Mbps
Range [...] Good Better Best
Wireless N [...]
Yes
Yes
Yes
One Button Advanced Security Setup [...]
Yes
Yes
Yes
Easy Setup [...]
Yes
Yes
Yes
Basic Internet Surfing
Yes
Yes
Yes
HD Video Streaming & Multiplayer Online Gaming Good Better Better
Antenna Type Omni Directional, Detachable Omni Directional, Detachable Omni Directional, Detachable
CCA Technology [...]
Yes
Yes
MIMO Technology [...]
Yes
Yes
